T GRID PROFILE

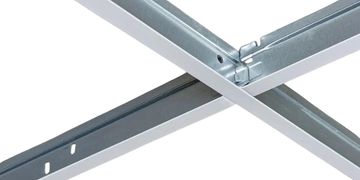

T Grid (24mm Plain)

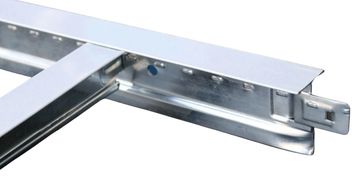

Main Runner
Length (mm) - 3000 /3600
Height (mm) - 32/38
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45

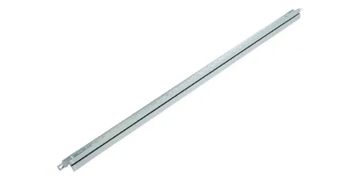

Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 24/32
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45

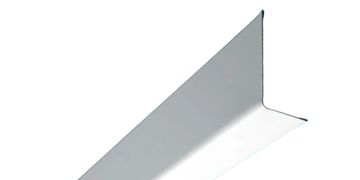

Wall Angle
Length (mm) - 3000
Height (mm) - 24
Width (mm) -24
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 8.45
T Grid (15mm Plain)
Main Runner
Length (mm) - 3000 /3600
Height (mm) - 32
Width (mm) -15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45

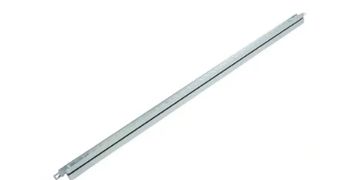

Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 26
Width (mm) - 15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45

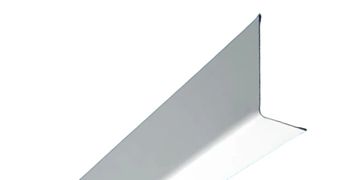

Wall Angle
Length (mm) - 3000
Height (mm) - 24
Width (mm) -15
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 8.45

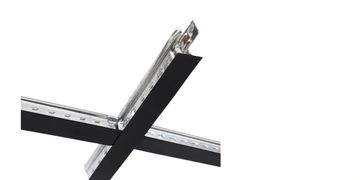

T Grid (15mm Centre Black)
Main Runner
Length (mm) - 3000 /3600
Height (mm) - 32
Width (mm) -15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 6.02
Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 32
Width (mm) - 15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 6.02
Wall Angle
Length (mm) - 3000
Height (mm) - 24
Width (mm) -15
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 6.02
T Grid (24mm Centre Black)
Main Runner
Length (mm) - 3000 /3600
Height (mm) - 32
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45
Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 26
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45
Wall Angle
Length (mm) - 3000
Height (mm) - 24
Width (mm) -24
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 8.45
T Grid (15mm Silhoute)
Main Runner
Length (mm) - 3000 /3600
Height (mm) - 38
Width (mm) -15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.40
Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 38
Width (mm) - 15
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) -8.40
Wall Angle
Length (mm) - 3000
Height (mm) - 15
Width (mm) -15
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 8.40
T Grid (24mm Plain Black)
Main Runner
Length (mm) - 3000 /3600
Height (mm) - 32/38
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45
Cross Tee
Length (mm) - 1200 & 600
Height (mm) - 24/32
Width (mm) -24
Thickness (mm)- 0.3
Max Load Bearing capacity (Kg/m2 ) - 8.45

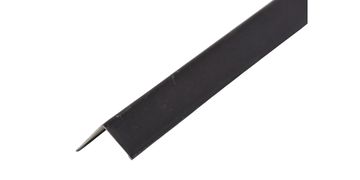

Wall Angle
Length (mm) - 3000
Height (mm) - 24
Width (mm) -24
Thickness (mm)- 0.4
Max Load Bearing capacity (Kg/m2 ) - 8.45
