Gypsum Block
Gypsum Block is an internal wall solution (made using calcium sulphate as a base material). These blocks combine the benefits of conventional masonry with contemporary drywall construction. It has all the qualities of masonry: solid, void-free and highly stable; but better as it doesn’t require mortar, sand or plaster. This means the walls are to large degree built without water, Just like dry walls, but not similar to conventional dry walls. For distinction this construction with gypsum blocks is often referred to as massive drywall construction.

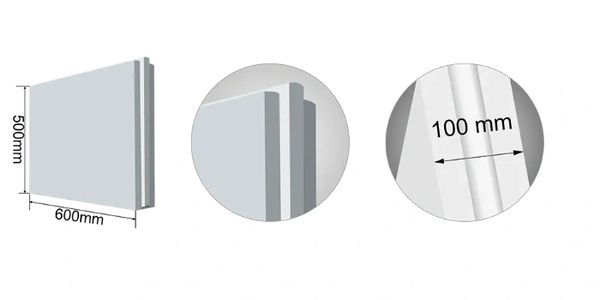

Specifications
The Gypsum Block non-load bearing internal walls are built using these blocks with a tongue and groove mechanism.
Face Dimensions : 500 mm X 600 mm
Thickness : 100 mm
Weight Per Block : Approx 22 kg
Acoustic Performance : 38 - 42 dB (STC)
Dry Density : 650 kg / cubic meter
Benefits
Wet factory finish panel
Ready to install at site with minimum efforts
Fast & Reliable Construction
High impact strength
No need of Plaster and Water Curing
Easy to Chisel and finish
Can take up to 20 Kg point load and can be nailed
Steady wall without capillary movement of water
High Glossy finish (ready to paint)
No Pilferage
Good Acoustic performance
Features of Gypsum Block Panels
| SOLID
♦ 100% mineral
♦ 100% robust
♦ 100% precise dimensions
| DRY
♦ No mortar
♦ No interior plaster
♦ Surface ready after sealing gaps
| HEALTHY
♦ Biologically safe
♦ Non-emitting
♦ Does not support mould growth
| SUSTAINABLE
♦ Resistant to ageing
♦ Duration of use more than 50 years
♦ Extremely low emissions during production
| HYBRID
♦ Solid construction, but low mass per
unit area.
♦ Lightweight, but no studwork or cavities.
| QUICK INSTALLATION
♦ Independent installation alongside the
construction of the building shell
and with optional hydro protection.
| SOUND INSULATION
♦ It contains sounds of up to 42 db
(general conversation, radio sounds,
soft music etc.) same as any other
masonry internal wall without any
sound proofing treatment.
| FIRE PROOF
♦ Can achieve 3 and 4 hour fire-resistive
ratings.
♦ Totally non-combustible once
completely built.
| Other Features
♦ Traditionally as single-leaf and double-
leaf partition walls.
♦ Proven to be comparable to walls that
are 220 kg/m² heavier as installation
walls.
♦ Ideal for independent wall linings.
♦ Highly efficient as shaft walls.
♦ As highly efficient cladding for columns
for fire protection.
♦ In Nordic countries it is classified EI
90-M firewall, which is a standard for
reliable, functional and offers a good
soundproofing. It fits perfectly to
protection need against fire for schools,
multipurpose halls, cultural centers.
♦ Also as safe, lead-free radiation
protection blocks in X-ray facilities.
