G.I Partition Profile

G.I Partition Profile

                              Ultra design metal components and accessories come with the assurance of quality from manufactured through a cold rolled pre-forming process that locally work-hardens the base material, and provides great strength to the drywall systems. Ultra Design is made of special high-performance steel that undergoes stringent quality checks and controls to ensure correct and consistent base material for further profiling.

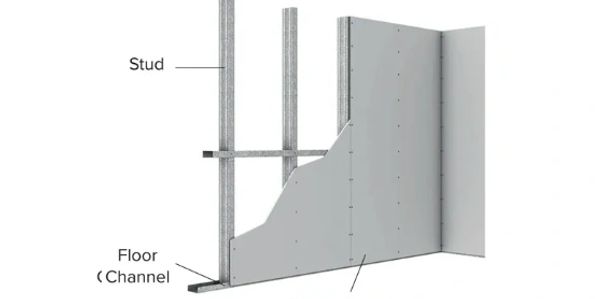

Stud – 48

Length : 3050/3660 mm
Thickness : 0.50 mm
Size : 10 x 34 x 48 x 36 mm
GI Coating : 120 GSM
Yield Strength: 240 Mpa

Floor Channel – 50

Length : 3660 mm
Thickness : 0.50 mm
Size : 32 x 50 x 32 mm
GI Coating : 120 GSM
Yield Strength: 240 Mpa


Stud – 70

 Length : 3050/3660 mm
Thickness : 0.50 mm
Size : 10 x 34 x 70 x 36 mm
GI Coating : 120 GSM
Yield Strength: 240 Mpa

Floor Channel – 72

 Length : 36600 mm
Thickness : 0.50 mm
Size : 32 x 72 x 32 mm
GI Coating : 120 GSM
Yield Strength: 240 Mpa
