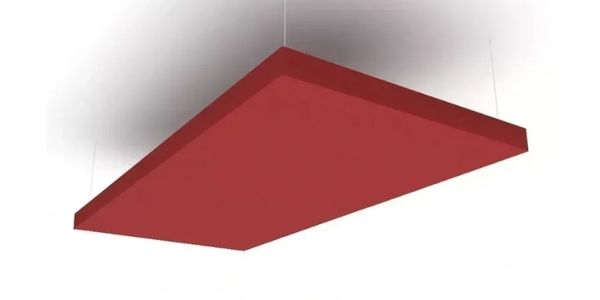

Acoustic Baffle & Cloud
Suspended acoustic baffles is a kind of sound- absorbing material
with high-efficiency absorption performance suspended on the ceiling. Compared with the other interior sound-absorbing materials, the acoustic baffles is a three-dimensional sound-absorbing structure with a higher sound absorption coefficient. It is light weight and has high sound absorption efficiency and convenient to install.
Suspended acoustic baffles can absorb sound energy in all
directions, because the side facing the sound source can absorb sound directly and the other sound waves will enter the various sides of the acoustic baffles in the other space gap.
Features
Excellent sound absorbing performance: The NRC can be 0.85 to 0.94
Easy installation: to cut by knife and easy to install by glue or nail
Good physical stability: will not inflate or shrink due to the change of temperature
Soft and natural texture: It will not get broken under huge impact of high elasticity
Easy maintenance: easy to remove the dust by vacuum cleaner or feather duster
Specifications
- Material : Rock wool Rigid board / Polyester Fibre Panel
- Size : Circle : Día 1200 / 1000 / 900 / 600
- Square : 1200 x 1200/1000 x 1000/600 x 600
- Standard Colours : White & Black
(colours can be customised) - Thickness : 40 mm / 50 mm
- Edge : Square
- Thermal conductivity : K = 0.082 w/mk
- NRC : upto 0.90

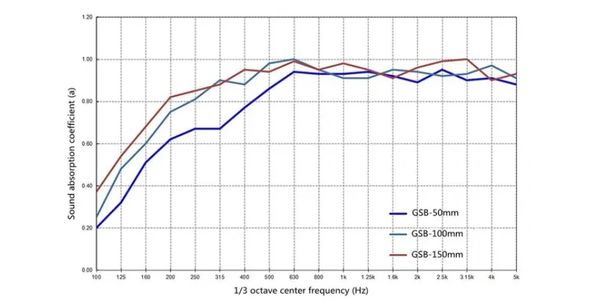

Acoustic Performance

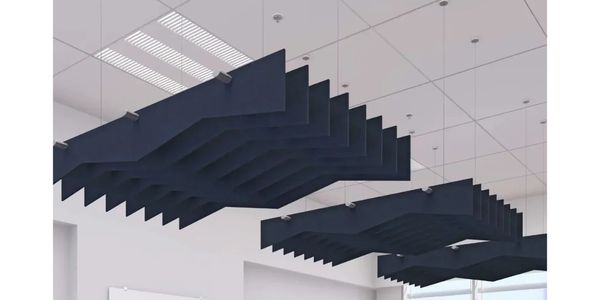

Applications
Suspended acoustic baffles is suitable for large area, multiple sound sources, high noise space, such as gymnasium, weaving or stamping rice gold workshop, etc.
Color Chart (Polyester Fibre Panel)
Color Chart (Fabric)
